Astm 1 Inch Stainless Steel Seamless Pipe , 100mm Diameter Stainless Steel Metal Pipe
zheheng steel is a professional producer in tp304,tp316l seamless stainless steel pipes ,we are regulary stocked 1 inch / 1.25 / 1.5 inch / 10 foot / 10 inch / 100mm / 12 inch diameter ss metal stainless steel pipe houdreds tons,
The stainless steel seamless pipe has an inner diameter of 6.0mm or more and an annealed stainless steel tube with a wall thickness of 13mm or less. It can be a W-B75 type Vickers hardness tester. It is very fast and simple to test and is suitable for rapid and non-destructive inspection of stainless steel pipes. The stainless steel tube with an inner diameter of more than 30 mm and a wall thickness of more than 1.2 mm is tested by a Rockwell hardness tester to test the hardness of HRB and HRC. Stainless steel tubes with an inner diameter of more than 30 mm and a wall thickness of less than 1.2 mm are tested with a surface Rockwell hardness tester to test HRT or HRN hardness.
and
Grades :201,202,303,304,304L,310,310S,316,316L,316Ti,321,430,431,410,420, etc
Lenght :5.8-6m or as customers' request.
Thickness :1mm~70mm
Outer Diameter :6mm-630mm
Surface :Matt, 2B, BA, 4k, 180G,320G,400G,600G,800G polishing,mirror finish
technology :Cold drawn; Cold rolled; Hot rolled.Hot drawn
Packing :Common Standard Export-sea Packing : Each bundle is fixed at lest three times strips , wrapped with durable PVC material or as customized
Applications :
Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boilers, nuclear, energy, construction field, ships building industry, war and electricity industry, boiler heat exchanger, machiner and hardware fields and medical equipment, fertilizer, etc
Chemical Composition about stainless steel pipe :
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 201 | 0.12 | 0.75 | 7.00 | 0.045 | 0.045 | 1.00-1.28 | 13.70-15.70 |
| 202 | 0.15 | 1 | 2.25 | 0.045 | 0.045 | 4.07-4.17 | 14.00-16.00 |
| 304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
| 309 | 0.15 | 0.75 | 2 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310S | 0.08 | 1.5 | 2 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
Stainless steel pipe dimentions
| Dimensions for ASME/ANSI Standards | | | | | | | | Unit:mm |
| | | | | | | | | | | B16.9 B16.28 B36.10 |
| Nominal pipe Size(NPS) | Outside Diameter | Nominal Wall Thickness |
| | | Sch5s | SCH10S | Sch20 | Sch30 | Sch40 | STD | Sch80 | XS | Sch160 | XXS |
| 8 | 1/4 | 13.7 | 0.54 | - | 1.65 | - | 1.85 | 2.24 | 2.24 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.1 | 0.675 | - | 1.65 | - | 1.85 | 2.31 | 2.31 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.3 | 0.84 | 1.65 | 2.11 | - | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.7 | 1.05 | 1.65 | 2.11 | - | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.4 | 1.32 | 1.65 | 2.77 | - | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1.1/4 | 42.2 | 1.66 | 1.65 | 2.77 | - | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1.1/2 | 48.3 | 1.90 | 1.65 | 2.77 | - | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.3 | 2.38 | 1.65 | 2.77 | - | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2.1/2 | 73.0 | 2.88 | 2.11 | 3.05 | - | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.9 | 3.50 | 2.11 | 3.05 | - | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3.1/2 | 101.6 | 4.00 | 2.11 | 3.05 | - | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.3 | 4.50 | 2.11 | 3.05 | - | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.3 | 5.56 | 2.77 | 3.40 | - | - | 6.55 | 6.55 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.3 | 6.62 | 2.77 | 3.40 | - | - | 7.11 | 7.11 | 10.97 | 10.97 | 18.26 | 21.96 |
| 200 | 8 | 219.1 | 8.62 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.0 | 10.75 | 3.40 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 15.09 | 12.70 | 28.58 | 25.40 |
| 300 | 12 | 323.8 | 12.75 | 3.96 | 4.57 | 6.35 | 8.38 | 10.13 | 9.53 | 17.48 | 12.70 | 33.32 | 25.40 |
| 350 | 14 | 355.6 | 14 | 3.96 | 4.78 | 7.92 | 9.53 | 11.13 | 9.53 | 19.05 | 12.70 | 35.71 | - |
| 400 | 16 | 406.4 | 16 | 4.19 | 4.78 | 7.92 | 9.53 | 12.70 | 9.53 | 21.44 | 12.70 | 40.49 | - |

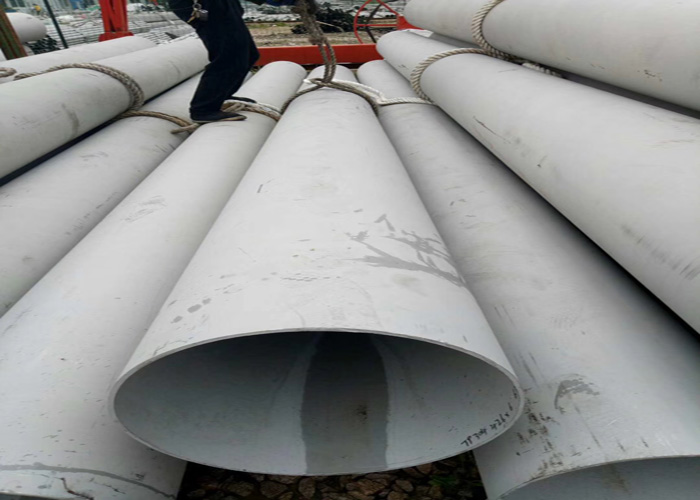

Our product show :
